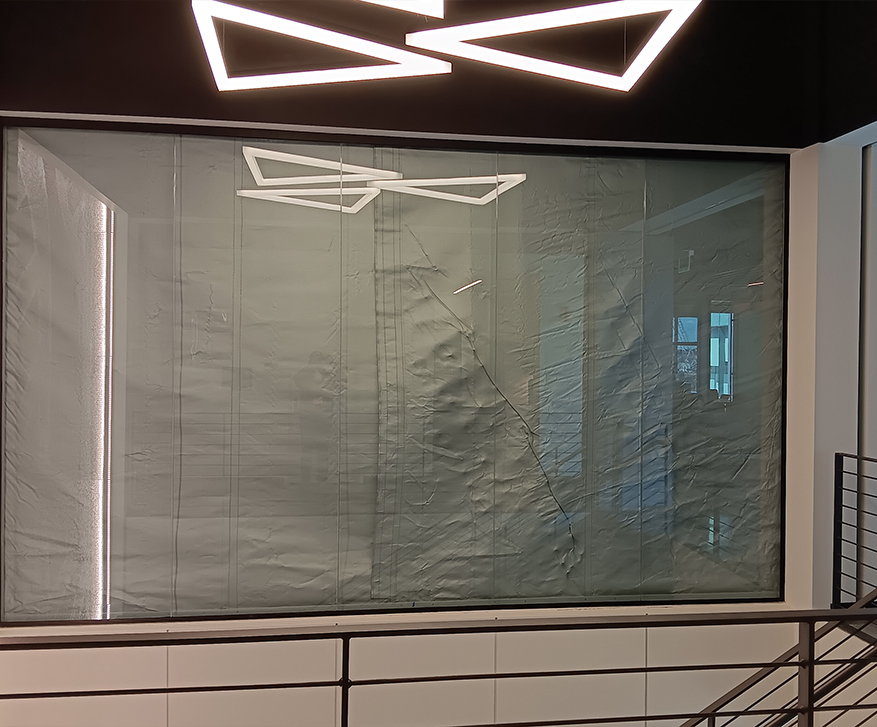

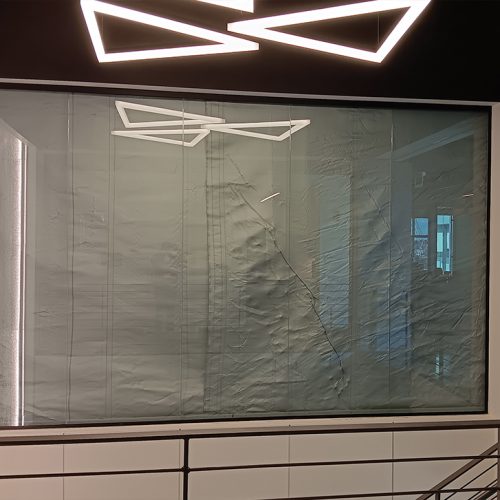

The U.S. Smoke & Fire SD240GS 2-Hour Fire Protective Smoke Curtain is a 2-hour rated UL Listed, Labeled, and Recognized Gravity Fail Safe deployable fire protective smoke curtain. This system is composed of a glass-fiber fabric in a Panama weave rolled on a round steel tube in a fire-rated assembly. The curtain remains retracted above the finished ceiling by a low voltage system until activated by a fire alarm system, smoke alarm, or fusible link, at which point it descends at 6 inches per second and creates a smoke and fire barrier with quick deployment.
2-Hour Fire Protective Smoke Curtain with Egress Options
Our SD240GS 2-Hour smoke curtain system is a cutting-edge solution for enhancing fire protection measures in any building. Specifically engineered for high-traffic commercial and public spaces, this system integrates the latest technologies to effectively contain smoke and prevent fire spread. Whether installed in atriums, stairwells, elevators, or aircraft hangars, the curtain remains discreetly tucked away until activated by the fire alarm system.
When deployed, the curtain descends in a controlled manner, providing essential protection against smoke migration and fire hazards. Offering ease of deployment and reliable performance, the SD240GS Fire Protective Smoke Curtain system is an invaluable asset for safeguarding large, open areas and critical building openings where swift smoke containment is paramount. Explore some of the options below for this model, or contact us to discuss your project in detail.
Our Design Options
Call us to learn about our custom design options.
Ceiling Finishes
Flushed
Recessed
Soffit
Wall Finishes
Example
Example
Example
Technical Information
Advanced Options for the SD240GS Smoke Curtain
The SD240GS 2-Hour system is more than just a safety measure; it is an essential element of any thorough fire protection plan. With a variety of features aimed at maintaining optimal efficiency and safety, from advanced detection to swift deployment that reduces property damage and saves lives, our fire-rated smoke curtain is a critical asset in safeguarding your building. Discover the advantages of our fire smoke curtain and how it can enhance your fire protection strategy below.
With a max span of up to 146 feet and a drop height of 45 feet, the SD240GS 2-hour fire protective smoke curtain features single or multi-roller assembly options with a 24 V motor control circuit housed within, as well as an easy-access grab strap for manual egress. This opaque gray fire-protective smoke curtain is unobtrusive once installed, making it an aesthetically appealing fire protection option.
The U.S. Smoke & Fire SD240GS 2-Hour Fire Protective Smoke Curtain with Pass Through Slot is a smoke and fire barrier system per IBC 1008. It is UL certified for up to a 2-hour wall and is used for corridor rating, cross cross-corridor solutions where push-to-exit is required
Technical Information:
- UL certified for up to 2 hours
- The curtain can have a maximum span of up to 146 feet and a drop height of 45 feet
- Utilized for corridor rating, cross corridor solutions where push to exit is required
- Push to exit is less than 15 pounds of push force
- The threshold is 3/4 inch
- The slope is 50%
- The opening is more than six feet, eight inches from the top
- Pass through slot
The U.S. Smoke & Fire SD240GS 2- to 3-Hour Fire Protective Smoke Curtain with Pass Through Slot is a smoke and fire barrier system per IBC 1008. It is UL certified for up to 3 hours and used for corridor rating, cross corridor solutions where push to exit is required.
Technical Information:
- UL certified for up to 3 hours
- The curtain can have a maximum span of up to 146 feet and a drop height of 45 feet
- Utilized for corridor rating, cross corridor solutions where push to exit is required
- Push to exit is less than 15 pounds of push force
- The threshold is 3/4 inch
- The slope is 50%
- The opening is more than six feet, eight inches from the top
- Pass through slot
